Description
Series
Phoenix
Spray Scale
Extreme Detail to Medium
Atomization Pattern
Round
Working Pressure
15 - 43 psi (0.10 - 0.30 Mpa)
Head System
Needle, Nozzle, Nozzle Cap (Open eyelet type)
Nozzle Size
0.2 mm
Nozzle Type
Screw-On
Feed Style
Gravity
Paint Capacity
0.05 oz (1.50 ml)
Operating Type
Dual Action
Handle Type
Preset Adjustment
Features
- Preset Handle for precise control of paint/material flow.
- Solvent-proof material (Teflon O-Ring) is used for fluid needle packing.
- One-piece auxiliary level/needle chucking guide assembly for easy maintenance.
- Larger diameter nozzle thread, to make the nozzle much stronger and ensure better nozzle centering.
Air Supplying
- Air compressor is necessary for airbrush.
- Using a compressor with an air regulator is highly recommended to get sufficient spraying quality.
- Operates on air pressure ranging from 0.1 MPa (14 psi) to 0.3 MPa (43 psi).
- Fine adjustment of air volume is available with 222B Finger Lever and Air Volume Adjuster.
Painting with airbrush
- 222B is double action airbrush. Firstly put diluted paint in cup, Secondly push Finger Lever with forefinger or thumb, and air will be blown, Thirdly pull Finger Lever backward, Volume of air and liquid is adjustable with handling of Finger Lever.
- More you pull Finger Lever, Bigger spray pattern you get. Use Masking tape when you need sharp line.
- When you get small spray pattern, close airbrush to object.
- Pre-set adjustment handle is used for spraying a certain amount of paint. Pre-set adjustment handle stop the move of needle, and you can always spray the same amount of paint.
Notes

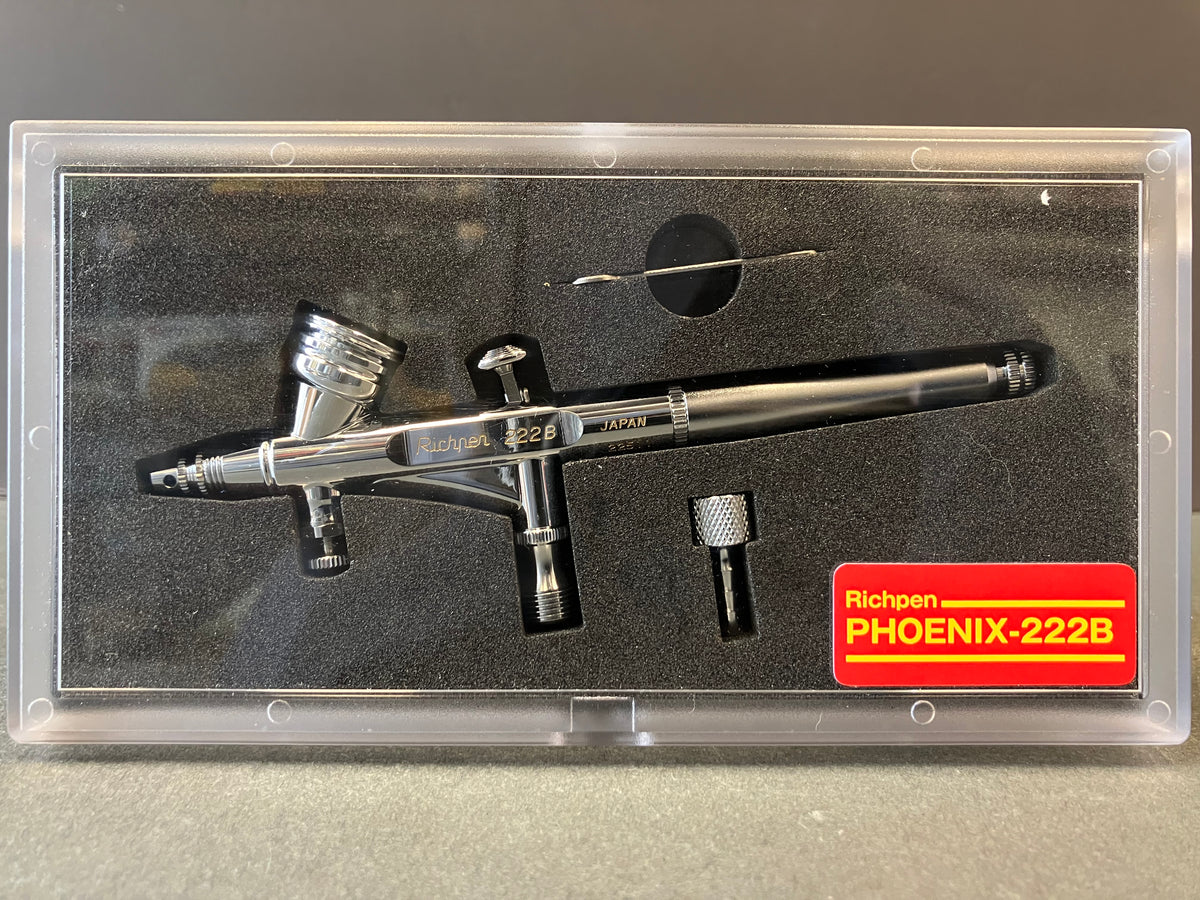

222B: Airbrush with integrated cup - 0.05 oz (1.50 ml)
222C: Airbrush with integrated cup - 0.20 oz (6 ml)
